| Application | C A T excavator spare parts |
| Name | Seal kit |
| Parts No | 283-9122 2839122 |
| Model | 303.5C 303.5D 303.5E 303C CR 304 304C CR 304D CR 304E 305 305.5D 305.5E 305C CR 305D CR 305E |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
MINI HYD EXCAVATOR 303.5C 303.5D 303.5E 303C CR 304 304C CR 304D CR 304E 305 305.5D 305.5E 305C CR 305D CR 305E
- More seal parts supplied to C A T machine
| 8C9179 SEAL AS |
| 345C, 350, 350 L, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 374F L, 375, 375 L, 385B, 385C, 385C L, 390D, 390D L, 390F L, 5080, AD45B, CR20, P16 |
| |
| 2G8777 SEAL |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| |
| 5P8890 SEAL-LIP TYPE |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| |
| 3P1461 SEAL-LIP TYPE |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| |
| 4J9964 SEAL |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12E, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M ... |
| |
| 8D3902 SEAL-LIP TYPE |
| 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 160G, 160H, 160H ES, 160H NA, 160K, 160M, 160M 2,... |
| |
| 7D8884 SEAL |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, ... |
| |
| 7D8883 SEAL |
| 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, ... |
| |
| 4337105 SEAL-PIN |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M 3, 140M 3 AWD, 143H, 160H, 16... |
| |
| 9D6589 SEAL-LIP TYPE |
| 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 140H, 140H ES |

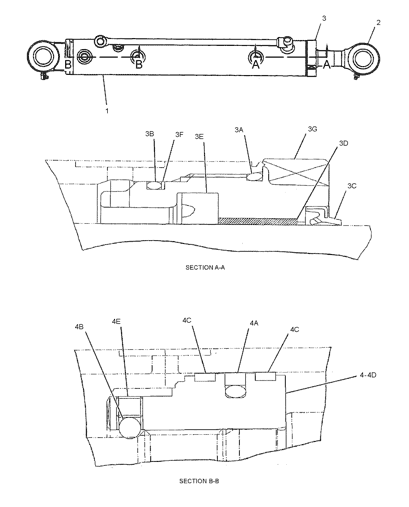

| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 286-7323 | [1] | CYLINDER AS (BLADE) | |
| | 3B-8488 | [1] | FITTING-GREASE (1/8-27 PTF) | |
| | 140-5169 | [1] | BUSHING | |
| | 175-4723 | [2] | SEAL | |
| 2 | 286-7324 | [1] | ROD AS | |
| | 3B-8489 | [1] | FITTING-GREASE (1/8-27 PTF) | |
| | 140-5169 | [1] | BUSHING | |
| | 175-4723 | [2] | SEAL | |
| 3 | 283-9117 | [1] | HEAD AS (CYLINDER) | |
| 3A. | 095-1707 | [1] | SEAL-O-RING | |
| 3B. | 095-1710 | [1] | SEAL-O-RING | |
| 3C. | 140-4934 | [1] | RING | |
| 3D. | 203-2343 | [1] | BUSHING | |
| 3E. | 203-2344 | [1] | RING | |
| 3F. | 237-7901 | [1] | RING | |
| 3G. | 283-9118 | [1] | HEAD | |
| 4 | 283-9119 | [1] | PISTON AS (CYLINDER) | |
| 4A. | 140-3750 | [1] | RING AS | |
| 4B. | 192-0633 | [1] | BALL | |
| 4C. | 237-7904 | [2] | RING | |
| 4D. | 283-9120 | [1] | PISTON | |
| 4E. | 283-9121 | [1] | SCREW (M6X1X6-MM) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 283-9122 | [1] | KIT-SEAL (BLADE) | |
| | | | (INCLUDES SEALS & RINGS) |
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
- We could supply the following spare parts
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
|
|
283-9122 2839122 Seal Kit Excavator Spare Parts Fitting For 303.5C 303.5D 303.5E 303C CR Images
|
